Thermocouple

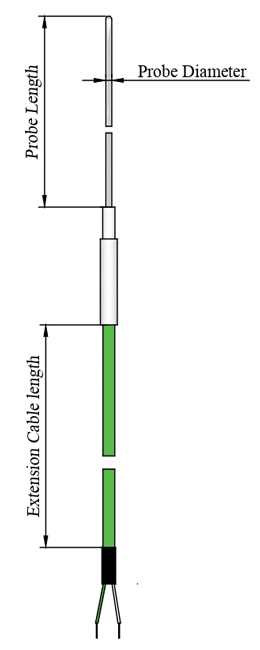

Technical Features
| Type | Positive (+) | Negative(-) | Colour Code |
| K | NiCr | NiAl | Yellow or Green |
| J | Fe | CuNi | Black |
| T | Cu | CuNi | Brown or Blue |
| N | NiCrSi | NiSi | Pink or Orange |
Tolerance: Class-1 acc.to EN60584
Insulation Material: MgO
Sheath Material:
Type-J & T: SS304, SS316, SS310
Type-K & N: Inconel-600, SS316, SS310
Hot Junction: Insulated
Hot Junction: Ungrounded and Grounded
Probe Diameter:
0.25mm (Type-K)
0.5mm,0.8mm (Type-K,J,N)
1.0mm, 1.5mm, 2.0mm, 3.0mm, 6.0mm
Probe Length: Customized (According to customer requirement)
Extension Cable Material: Customized (According to customer requirement)
Extension Cable Length: Customized (According to customer requirement)
# Additional versions on request
Technical Features
| Type | Positive (+) | Negative(-) | Colour Code |
| K | NiCr | NiAl | Yellow or Green |
| J | Fe | CuNi | Black |
| T | Cu | CuNi | Brown or Blue |
| N | NiCrSi | NiSi | Pink or Orange |
Tolerance: Class-1 acc.to EN60584
Insulation Material: MgO
Sheath Material:
Type-J & T: SS304, SS316, SS310
Type-K & N: Inconel-600, SS316, SS310
Hot Junction: Insulated
Hot Junction: Ungrounded and Grounded
Probe Diameter:
0.25mm (Type-K)
0.5mm,0.8mm (Type-K,J,N)
1.0mm, 1.5mm, 2.0mm, 3.0mm, 6.0mm
Probe Length: Customized (According to customer requirement)
Extension Cable Material: Customized (According to customer requirement)
Extension Cable Length: Customized (According to customer requirement)

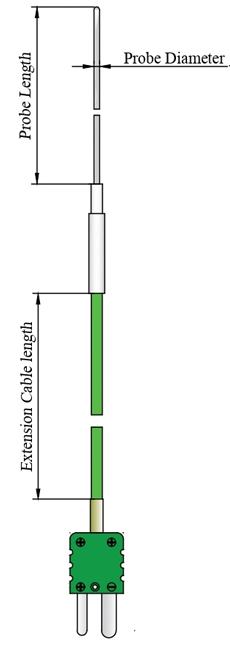

Connector Type: Miniature or Standard
# Additional versions on request
Technical Features
| Type | Positive (+) | Negative(-) | Colour Code |
| K | NiCr | NiAl | Yellow or Green |
| J | Fe | CuNi | Black |
| T | Cu | CuNi | Brown or Blue |
| N | NiCrSi | NiSi | Pink or Orange |
Tolerance: Class-1 acc.to EN60584
Insulation Material: MgO
Sheath Material:
Type-J & T: SS304, SS316, SS310
Type-K & N: Inconel-600, SS316, SS310
Hot Junction: Insulated
Hot Junction: Ungrounded and Grounded
Probe Diameter:
0.25mm (Type-K)
0.5mm,0.8mm (Type-K,J,N)
1.0mm, 1.5mm, 2.0mm, 3.0mm, 6.0mm
Probe Length: Customized (According to customer requirement)

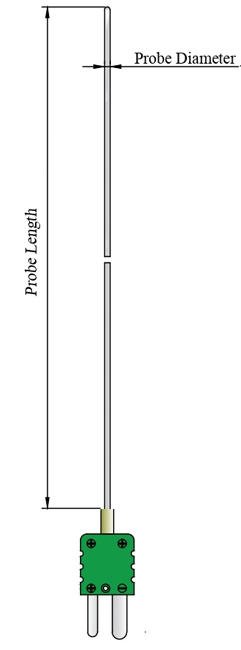

Connector Type: Miniature or Standard
# Additional versions on request
Technical Features
| Type | Positive (+) | Negative(-) | Colour Code |
| K | NiCr | NiAl | Yellow or Green |
| J | Fe | CuNi | Black |
| T | Cu | CuNi | Brown or Blue |
| N | NiCrSi | NiSi | Pink or Orange |
Tolerance: Class-1 acc.to EN60584
Insulation Material: MgO
Sheath Material:
Type-J & T: SS304, SS316, SS310
Type-K & N: Inconel-600, SS316, SS310
Hot Junction: Insulated
Hot Junction: Ungrounded and Grounded
Probe Diameter:
0.25mm (Type-K)
0.5mm,0.8mm (Type-K,J,N)
1.0mm, 1.5mm, 2.0mm, 3.0mm, 6.0mm
Probe Length: Customized (According to customer requirement)
Extension Cable Material: Customized (According to customer requirement)
Extension Cable Length: Customized (According to customer requirement)

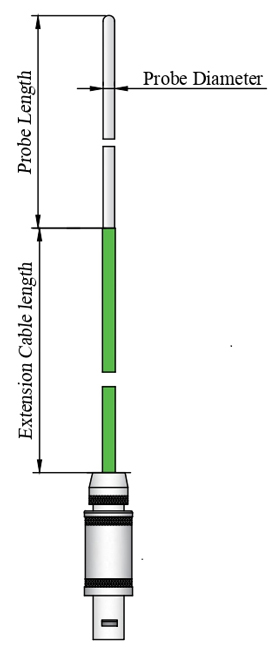

Connector Type: Lemo
# Additional versions on request

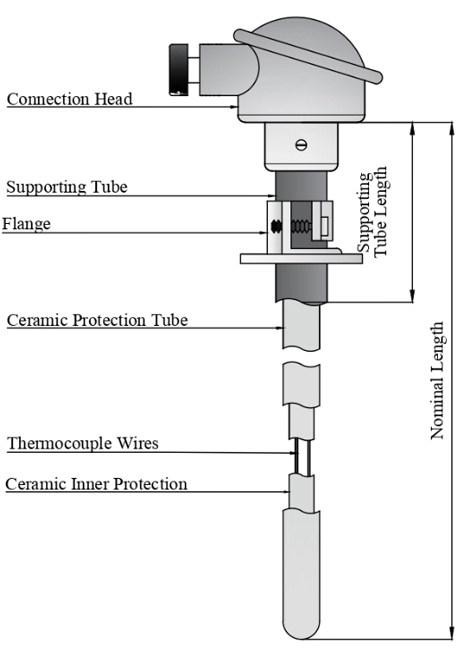

Technical Features
| Type | Positive (+) | Negative(-) |
| K | NiCr | NiAl |
| J | Fe | CuNi |
| N | NiCrSi | NiSi |
| S | Pt/Rh 10% | Pt |
| R | Pt/Rh13% | Pt |
| B | Pt/Rh30% | Pt/Rh6% |
Tolerance: Class-1 acc.to EN60584
Wire Diameter: 0.35mm, 0.5mm, 1.0mm, 1.5mm, 3.0mm
Connection Head: IP68, ATEX (Flame Proof)
Ceramic Protection Tube: Al 997, Al 95
Protection Tube Diameter: 8mm, 12mm, 15mm, 20mm, 24mm
Protection Tube Length: 200mm to 1800mm
Supporting Tube Specification: Customized (According to customer requirement)
Flange Specification: Customized (According to customer requirement)
Connector Type: Lemo
# Additional versions on request

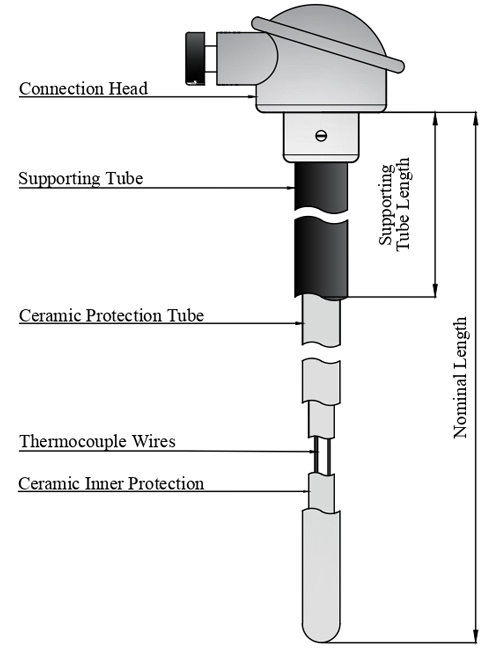

Technical Features
| Type | Positive (+) | Negative(-) |
| K | NiCr | NiAl |
| J | Fe | CuNi |
| N | NiCrSi | NiSi |
| S | Pt/Rh 10% | Pt |
| R | Pt/Rh13% | Pt |
| B | Pt/Rh30% | Pt/Rh6% |
Tolerance: Class-1 acc.to EN60584
Wire Diameter: 0.35mm, 0.5mm, 1.0mm, 1.5mm, 3.0mm
Connection Head: IP68, ATEX (Flame Proof)
Ceramic Protection Tube: Al 997, Al 95
Protection Tube Diameter: 8mm, 12mm, 15mm, 20mm, 24mm
Protection Tube Length: 200mm to 1800mm
Supporting Tube Specification: Customized (According to customer requirement)
# Additional versions on request

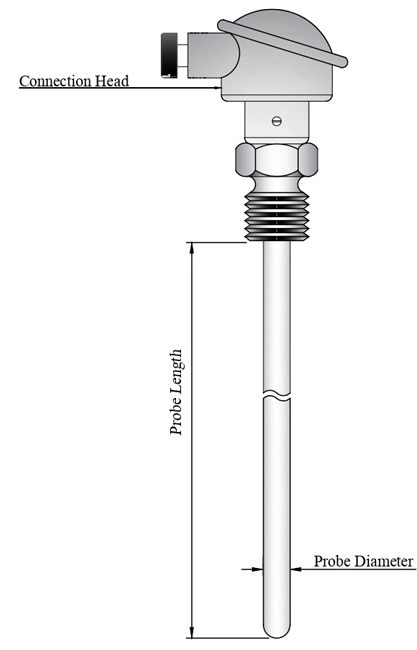

Technical Features
| Type | Positive (+) | Negative(-) |
| K | NiCr | NiAl |
| J | Fe | CuNi |
| N | NiCrSi | NiSi |
| S | Pt/Rh 10% | Pt |
| R | Pt/Rh13% | Pt |
| B | Pt/Rh30% | Pt/Rh6% |
Tolerance: Class-1 acc.to EN60584
Wire Diameter: 0.35mm, 0.5mm, 1.0mm, 1.5mm, 3.0mm
Connection Head: IP68, ATEX (Flame Proof)
Probe Material: Inconel-600, Molybdenum, SS-316L, SS316, SS310, SS304, Ceramic
Probe Diameter: 5mm to 30mm
Probe Tube Length: 200mm to 1800mm
Supporting Tube Specification: Customized (According to customer requirement)
# Additional versions on request
Fixed and Adjustable customized compression fitting is available
This constriction is also available in RTD (Pt 100)
